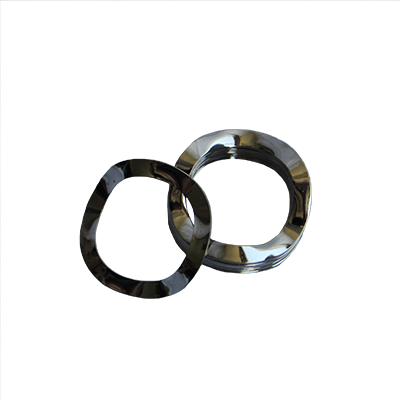

This spring steel wave spring washer features an outer diameter of 0.7500 and an inner diameter of 0.6300 inches. This wavy washer is equipped with a thickness of 0.0100 inches to meet your requirements. Our selection of wave spring washers are engineered for environments with a small amount of axial space. Wave washers are designed to provide low to medium spring forces in small spaces. This washer does not feature a finish.
Additional Information
Additional Information
| Material | Spring Steel - Hard |
|---|---|
| Finish | No |
| Bolt Size (Inch) | 9/16 |
| Bolt Size (Metric) | No |

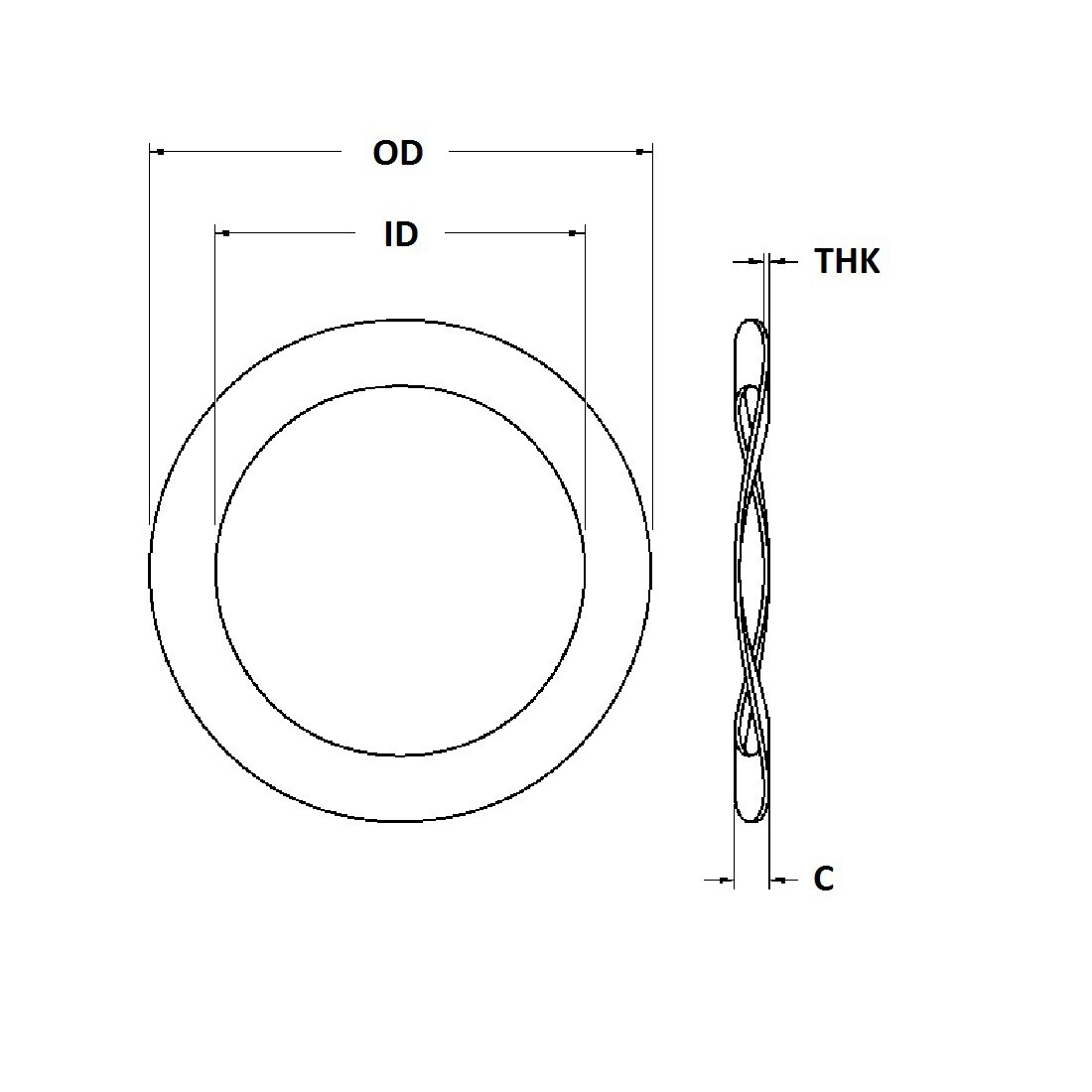

| I.D. | 0.6300 |
| O.D. | 0.7500 |
| Thickness | 0.0100 |
| DIM C | 0.0500 |
