Description
Details

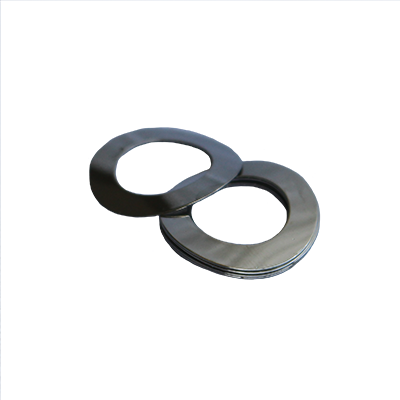

This wave washer is assembled with durable beryllium copper. The wave spring washer features an outer diameter of 0.9000 and an inner diameter of 0.7500 to meet your needs. This washer is equipped with a reliable tin finish to meet the requirements of your unique application. The wavy washer includes a thickness of 0.0100. Our selection of wave washers is designed to increase the life cycle of ball bearings. On the other hand, this beryllium copper washer is engineered to accommodate movement and vibration that can be caused by alignment problems.
Additional Information
Additional Information

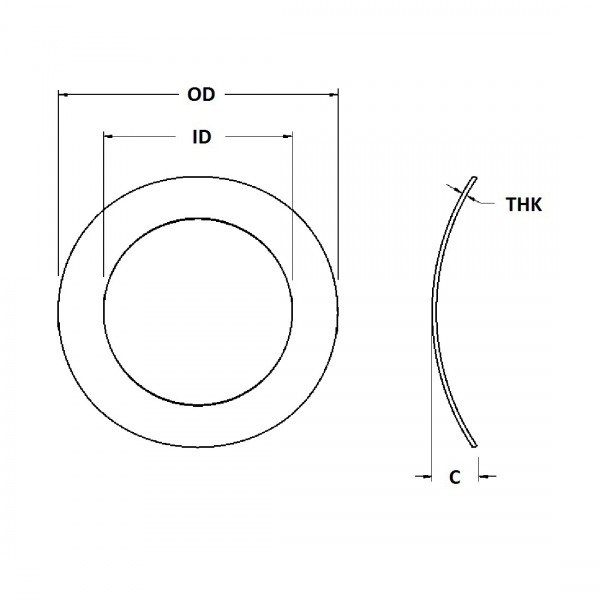

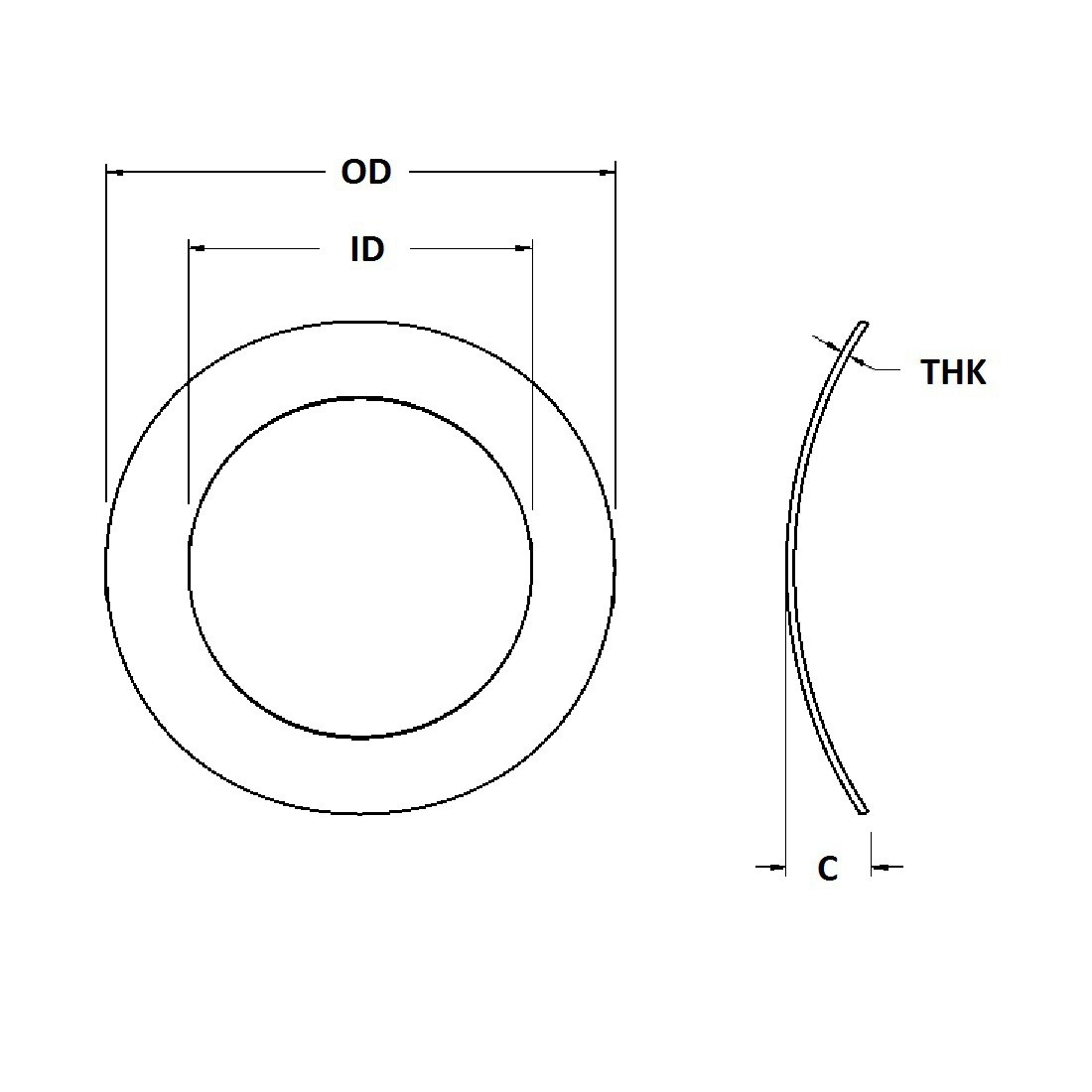

Material | Beryllium Copper |
---|---|
Finish | Tin |
Bolt Size (Inch) | 5/8 |
Bolt Size (Metric) | M18 |
I.D. | 0.7500 |
O.D. | 0.9000 |
Thickness | 0.0100 |
DIM C | 0.0800 |
