Description
Details

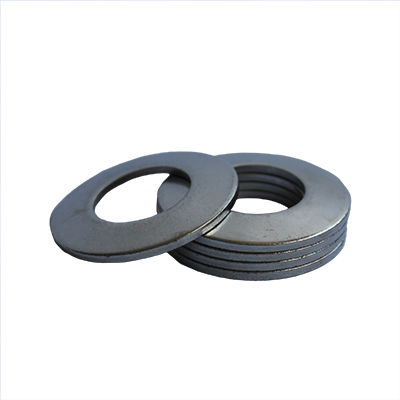

This belleville washer is assembled with a durable hard spring steel material. In addition, the belleville washer features a zinc and yellow finish to meet your requirements. Belleville or conical washers are engineered to generate minimal movement throughout the compression process. This type of washer is designed to accommodate a large degree of tension. In addition, belleville washers are utilized by technicians as shock absorbers on vibrating parts. This belleville washer features an outer diameter of 1.1250 inches and an inner diameter of 0.5300 inches to meet your needs. The conical washer is equipped with a thickness of 0.1250 inches. If you are required to maintain extensive loads in small spaces, we recommend investing in belleville washers.
Additional Information
Additional Information
| Material | Spring Steel - Hard |
|---|---|
| Finish | Zinc & Yellow |
| Bolt Size (Inch) | 1/2 |
| Bolt Size (Metric) | No |

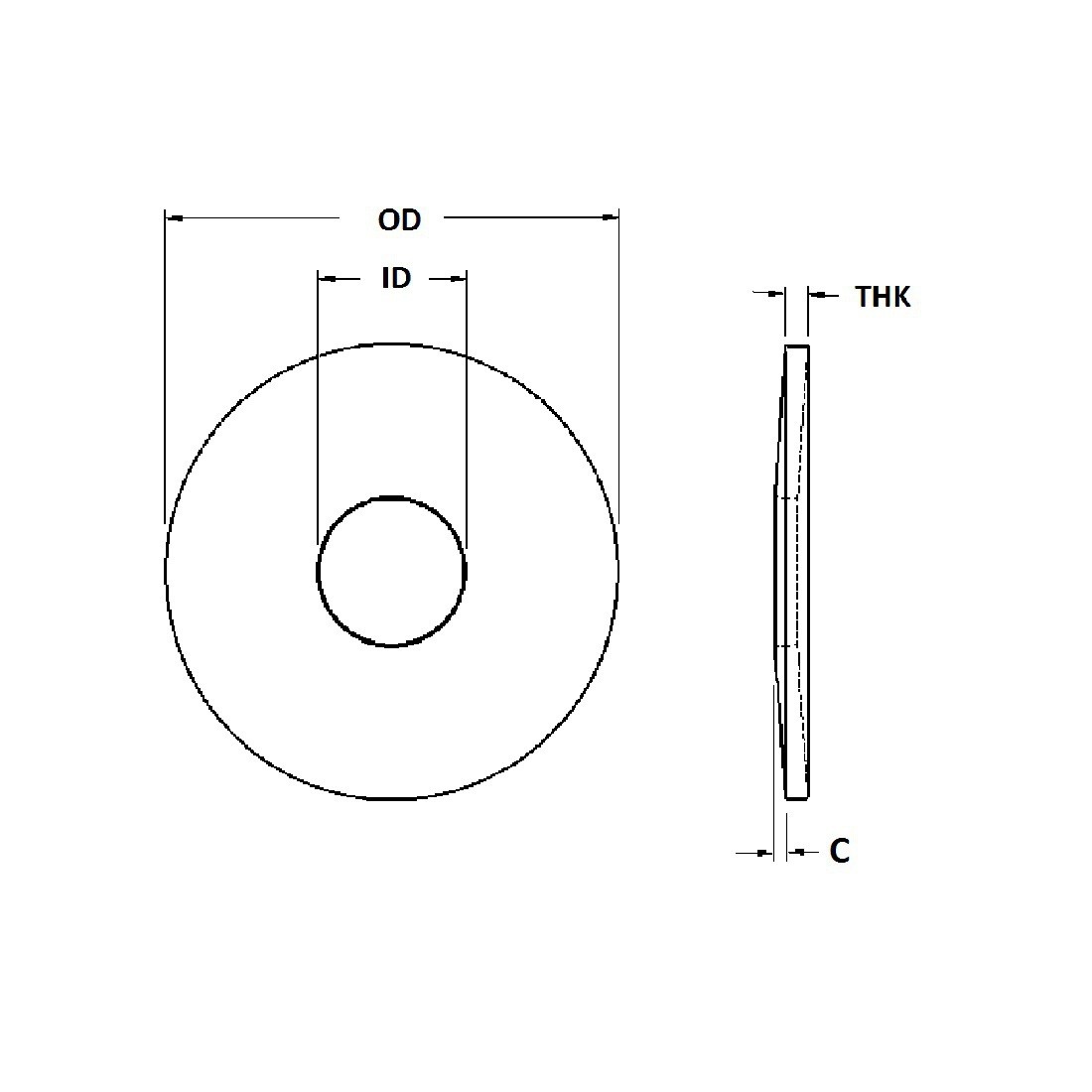

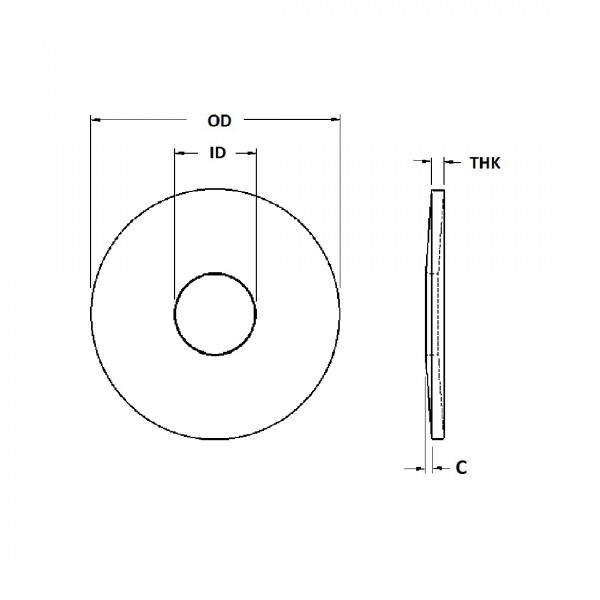

| I.D. | 0.5300 |
| O.D. | 1.1300 |
| Thickness | 0.1300 |
| DIM C | 0.0400 |
