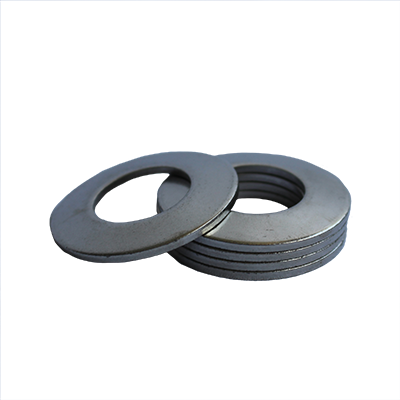

Belleville Washer - 0.121 ID, 0.242 OD, 0.029 Thick, Spring Steel - Hard, Cadmium

Be the first to review this product

Part Number:0.242-0.121-.029HHCB
Material: Spring Steel - Hard
Finish: Cadmium
Bolt Size (Inch): #4

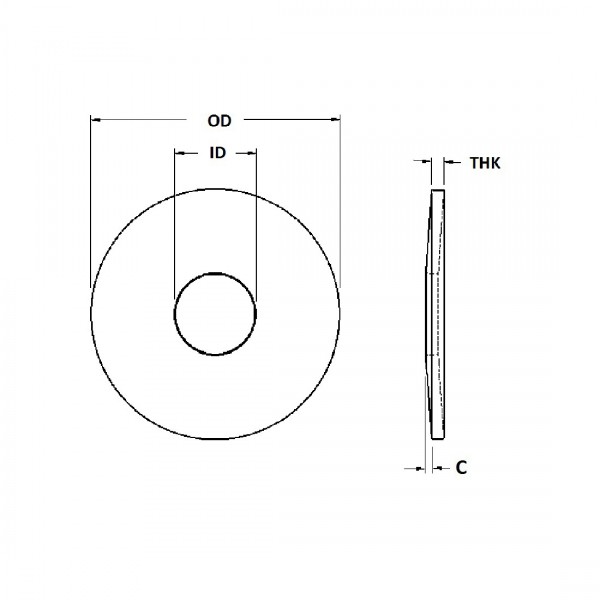

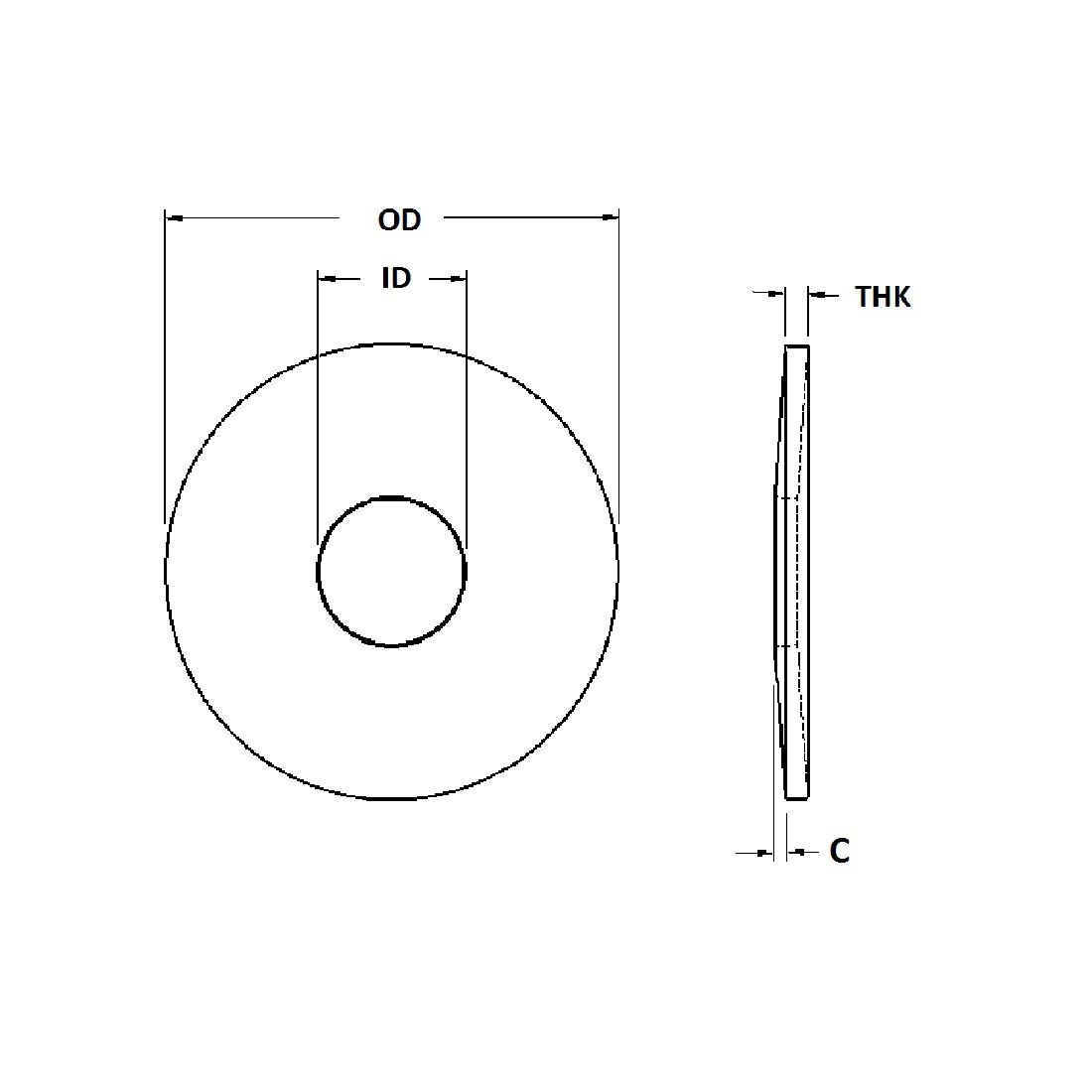

Inner Diameter (I.D.):0.1200 inches
Outer Diameter (O.D.):0.2400 inches
Thickness (T):0.0300 inches
Dim C: 0.0200
Stock:0

Contact Us!

* Required Fields

Description

Details

This belleville washer is assembled with a reliable and strong hard spring steel material and a cadmium finish to meet your requirements. Belleville washers are designed to maintain extensive forces with short spring lengths. In addition, belleville or conical washers create minimal movement during the compression process. This spring steel belleville washer features an inner diameter of 0.1210 inches and an outer diameter of 0.2420 inches to meet your needs. The conical washer is equipped with a thickness of 0.0290 inches. Belleville washers are engineered to be applied as a single spring or in a stack formation.

Additional Information

Additional Information

MaterialSpring Steel - Hard
FinishCadmium
Bolt Size (Inch)#4
Bolt Size (Metric)No
I.D.0.1200
O.D.0.2400
Thickness0.0300
DIM C0.0200
