Description
Details

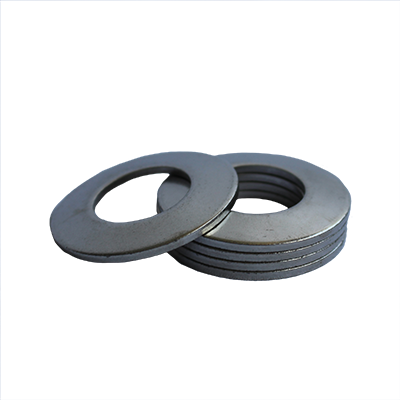

This belleville washer features an outer diameter of 0.2700 inches and an inner diameter of 0.0930 inches to meet the requirements of your unique application. The belleville or conical washer is assembled with durable bronze to ensure reliability and longevity. This belleville washer includes a thickness of 0.0080 inches and does not include a finish. Conical washers are designed to absorb vibration and movement in assemblies. Our catalog of belleville washers are engineered to accommodate thermal contraction and expansion between bolted joints.
Additional Information
Additional Information
Material | Bronze |
---|---|
Finish | No |
Bolt Size (Inch) | #2 |
Bolt Size (Metric) | M2 |

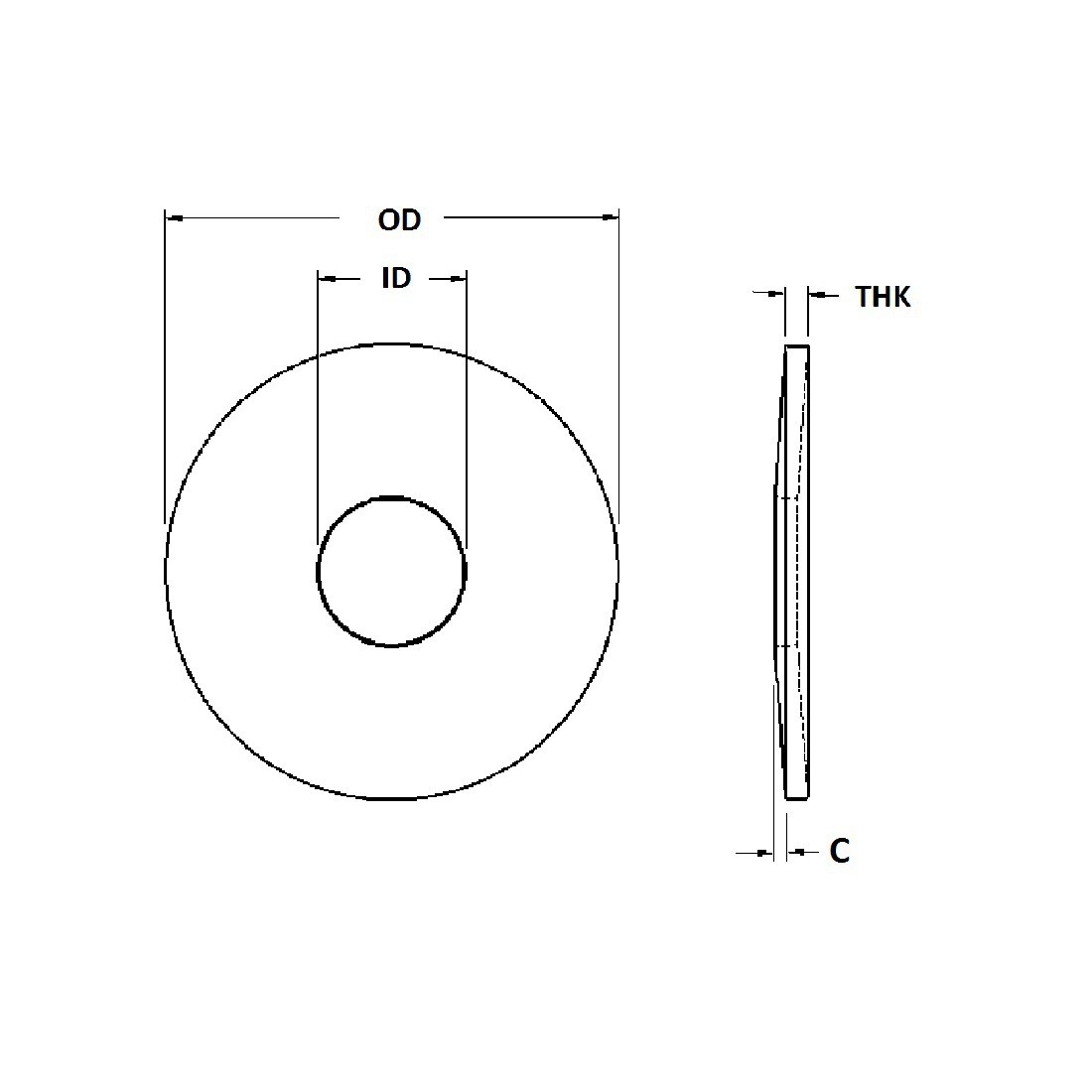

I.D. | 0.0900 |
O.D. | 0.2700 |
Thickness | 0.0100 |
DIM C | 0.0200 |
