This beryllium copper belleville washer features a tin finish to meet the requirements of your project. In addition, this belleville washer is designed to maintain extensive forces with small spring lengths. This copper washer features an outer diameter of 0.8800 inches and an inner diameter of 0.4100 inches. This belleville washer is utilized to obtain extensive loads in small spaces. The belleville or conical washer is equipped with a thickness of 0.0620 inches to ensure reliability and durability. Belleville washers feature a conically shaped disc form to meet your needs.
Additional Information
Additional Information

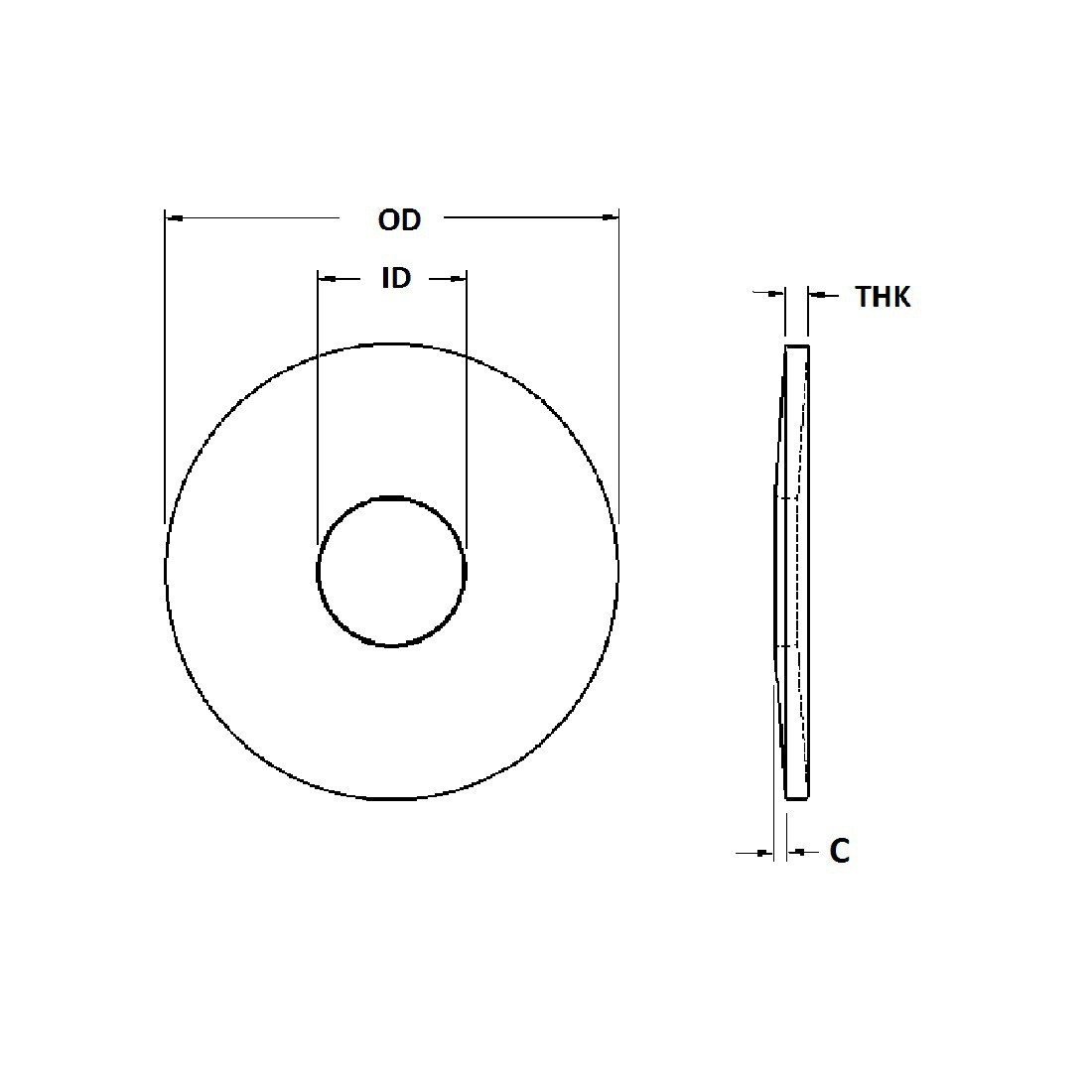

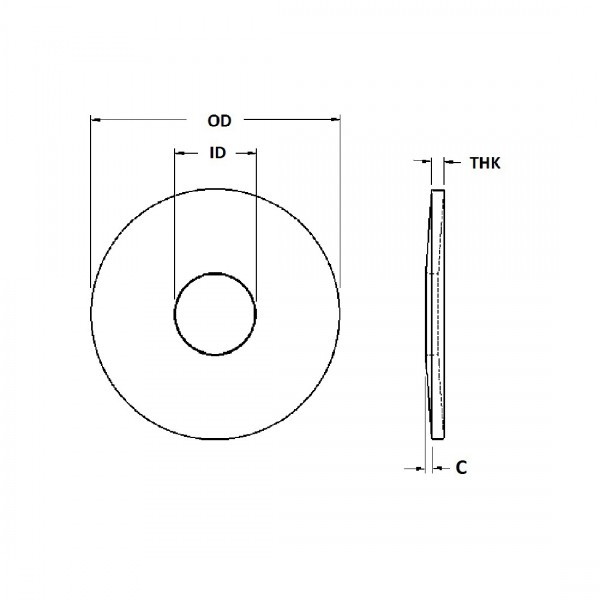

| Material | Beryllium Copper |
|---|---|
| Finish | Tin |
| Bolt Size (Inch) | 3/8 |
| Bolt Size (Metric) | No |
| I.D. | 0.4100 |
| O.D. | 0.8800 |
| Thickness | 0.0600 |
| DIM C | 0.0600 |
